we specialise in roll production and service, coverings and coatings, on-site maintenance, lubrication systems, pulping technology, winding shafts, manipulation systems, edge trimming devices, spraying nozzles and rotary steam joint spares

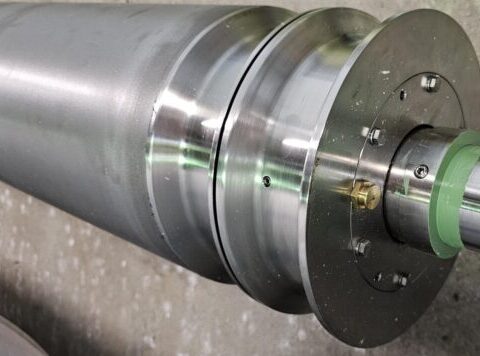

Breast Roll, Forming Roll, Wire Guide Roll, Wire Drive Roll, Couch Roll, Suction Roll. Length up to 15.000 mm, diameter up to 5.500 mm, weight up to 100 t, balancing up to 2500 m/min. Accessories and customization such as bearing systems, pulleys, polyurethane and rubber coverings, thermal coatings, suction roll shells from Duplex steel including grooving and blind drilling and more
Pick-up Suction Roll, Center Press Roll, Press Roll Soft/Hard, Shoe Press Counter Roll, Suction Press Roll, Felt Guide Roll, Paper Guide Roll. Length up to 15.000 mm, diameter up to 5.500 mm, weight up to 100 t, balancing up to 2500 m/min, Press Rolls up to 500kN/m. Accessories and customization such as bearing systems, pulleys, polyurethane and rubber coverings, thermal coatings, suction roll shells from Duplex steel including grooving and blind drilling and more
Dryer Cylinder, Vac-Roll Cylinder, Dryer Felt Guide Roll, Dryer Wire Guide Roll, Dryer Paper Guide Roll. Length up to 15.000 mm, diameter up to 5.500 mm, weight up to 100 t, balancing up to 2500 m/min. Accessories and customization such as bearing systems, pulleys, thermal and non-stick coatings, drilling, turbulent bars, thermal shields, siphone and more
Paper Guide Roll, Size Press Hard/Soft Roll, Clupak Central Roll, Clupak Guide Roll. Length up to 15.000 mm, diameter up to 5.500 mm, weight up to 100 t, balancing up to 2500 m/min. Accessories and customization such as bearing systems, pulleys and thermal coatings
Paper Guide Roll, Soft Nip Calender Roll, Hard Nip Calender Roll. Length up to 15.000 mm, diameter up to 5.500 mm, weight up to 100 t, balancing up to 2500 m/min. Accessories and customization such as bearing systems, polyurethane and rubber coverings, thermal coatings and more
Reel Drums, Reels Spools, Paper Guide Rolls, Winder Traction Rolls. Length up to 15.000 mm, diameter up to 5.500 mm, weight up to 100 t, balancing up to 2500 m/min. Accessories and customization such as bearing systems, couplings and thermal coatings
MG Cylinder, Yankee Cylinder, Thermo Roll, Cooling Roll. Length up to 15.000 mm, diameter up to 5.500 mm, weight up to 100 t, balancing up to 2500 m/min. Accessories and customization such as bearing systems, thermal coatings, inlet pipe, sealing head and more
from breast roll to guide rolls and drive rolls. We deliver coatings, with excelent durability and corrosion protection in wet enviroment. Ceramic with corrosion resistant primer, Rubber and Polyurethane coatings are here the best option

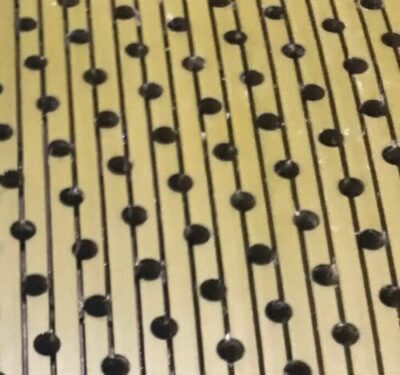

hard coatings for suction pick-up rolls, coach rolls and press rolls, rubber covers for press rolls and suction press rolls.
high durable Thungsten Carbide and Nano-ceramic Polymer coatings with outstanding realease and anticorrosive properties for guide rolls, stender rolls and dryers in the first sections or in the proximity of Size Press and Clupak Unit
Chrome coatings, Thungsten carbide coatings. Mirror finish with excelent resistance against wear and corrosion and good non-stick properties
high durable Rubber and Polyurethane covers, Thermal coatings

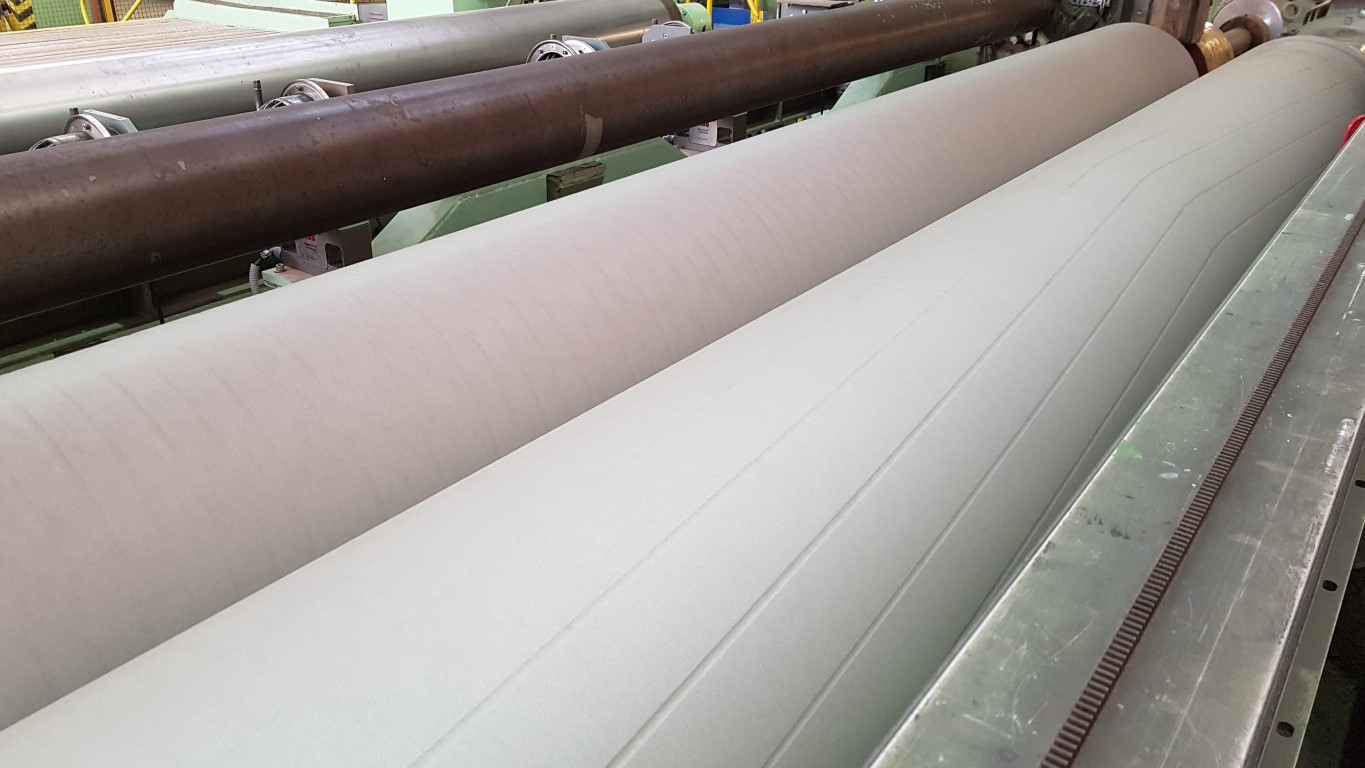

high durable pope reel coatings, reel spools coating and traction coatings for winder traction rolls
Yankee dryer Thungsten carbide coating

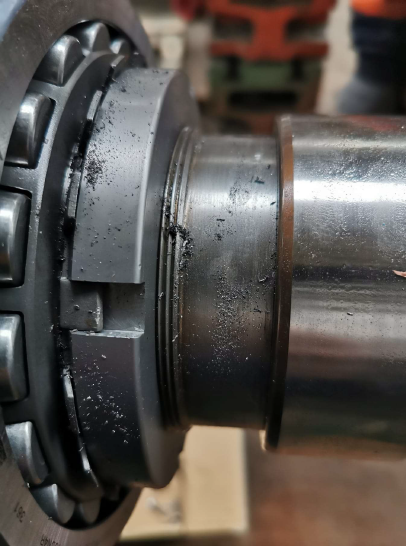

roll visual inspection, wall thickness measurement, coating thickness measurement, turning and grinding, balancing, non-destructive testing, re-coating, journal replacement, bearing and other accessories reconditioning or replacement
same as standard reconditioning + bottom and journal replacement, journal repair and machining, sealing exchange, sealing surface machining, inner parts repair or replacement, manhole cover and sealing replacement, shell spot damage repair, pressure vesel test incl. certificate

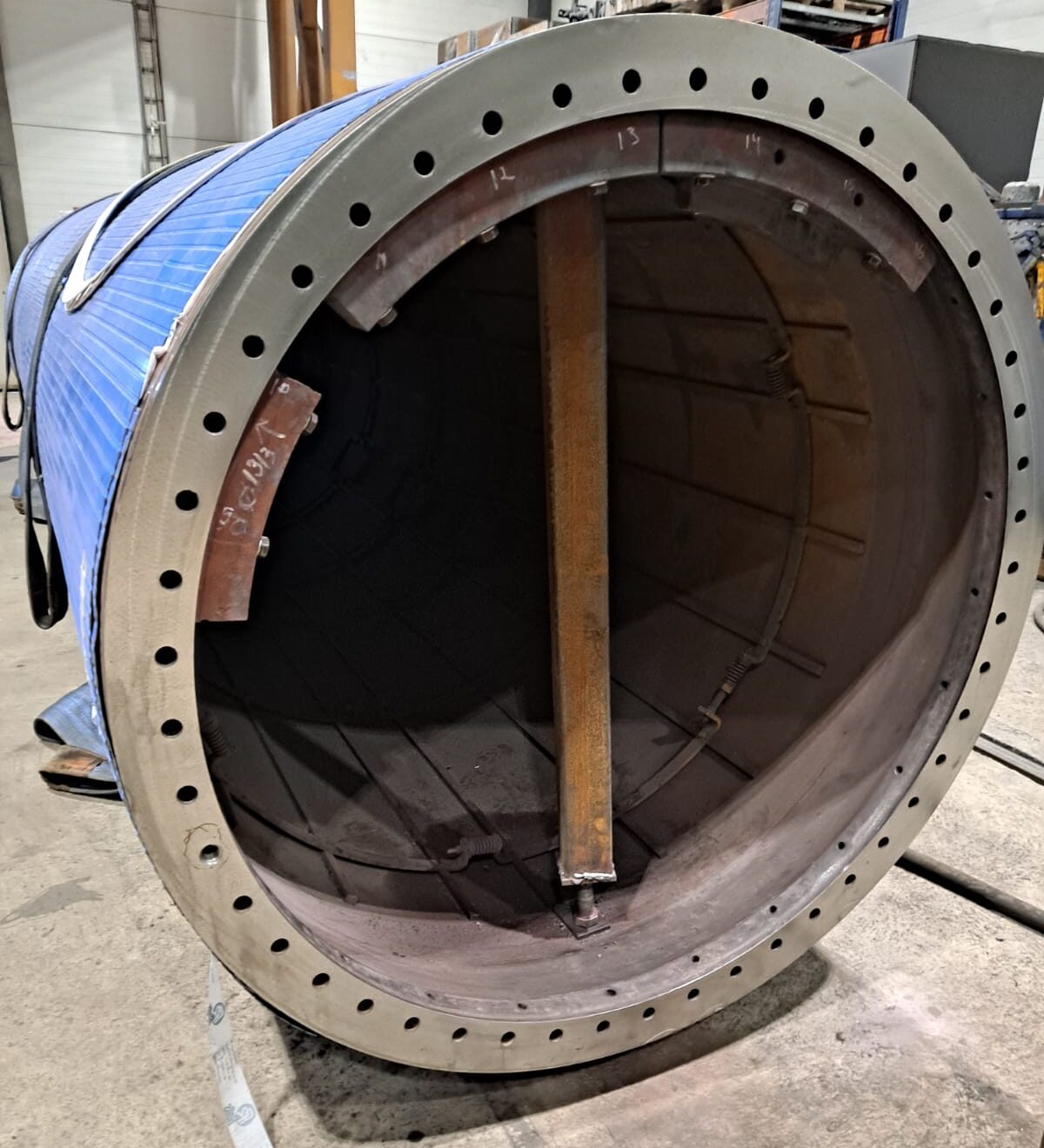

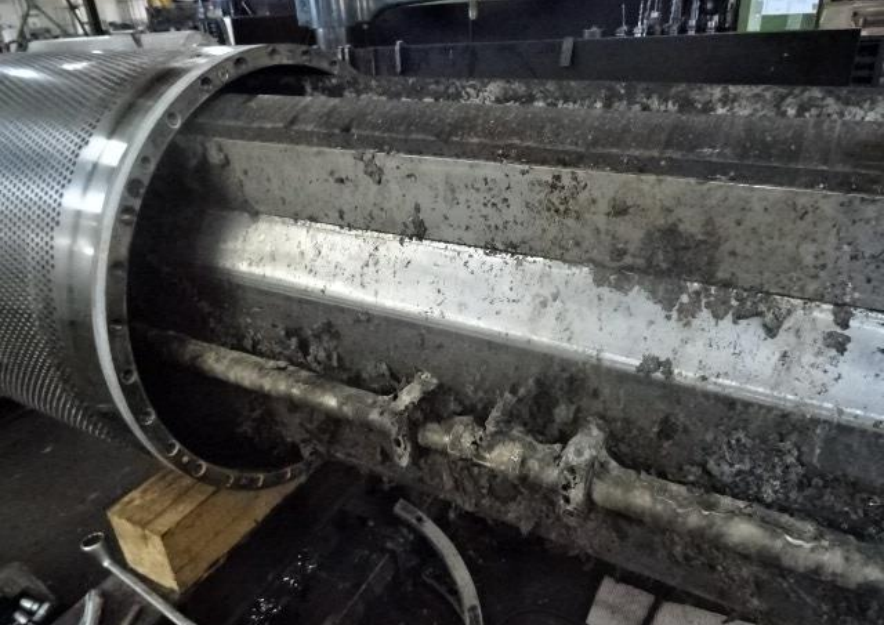

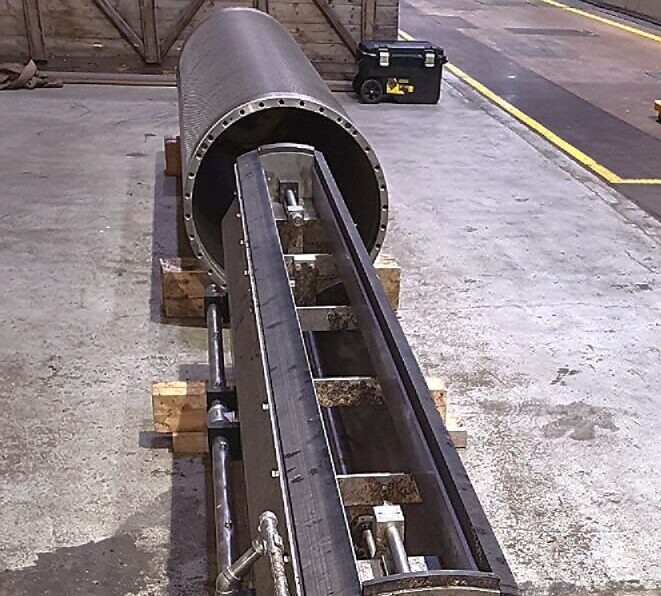

suction roll inspection including comprehensive inspection report, dynamic balancing, cleaning, roll shell and cover grinding, cover regrooving, sealing strips and air tubes relacement, shower system reconditioning, pilot bearing and bearings replacement, journal replacement, internal shell surface reconditioning, new shell manufacture from high quality Duplex stainless steel, optionaly with polyurethane cover incl. drilling patttern and grooving. Upgrade with smart technology for bearings and sealing strips condition monitoring

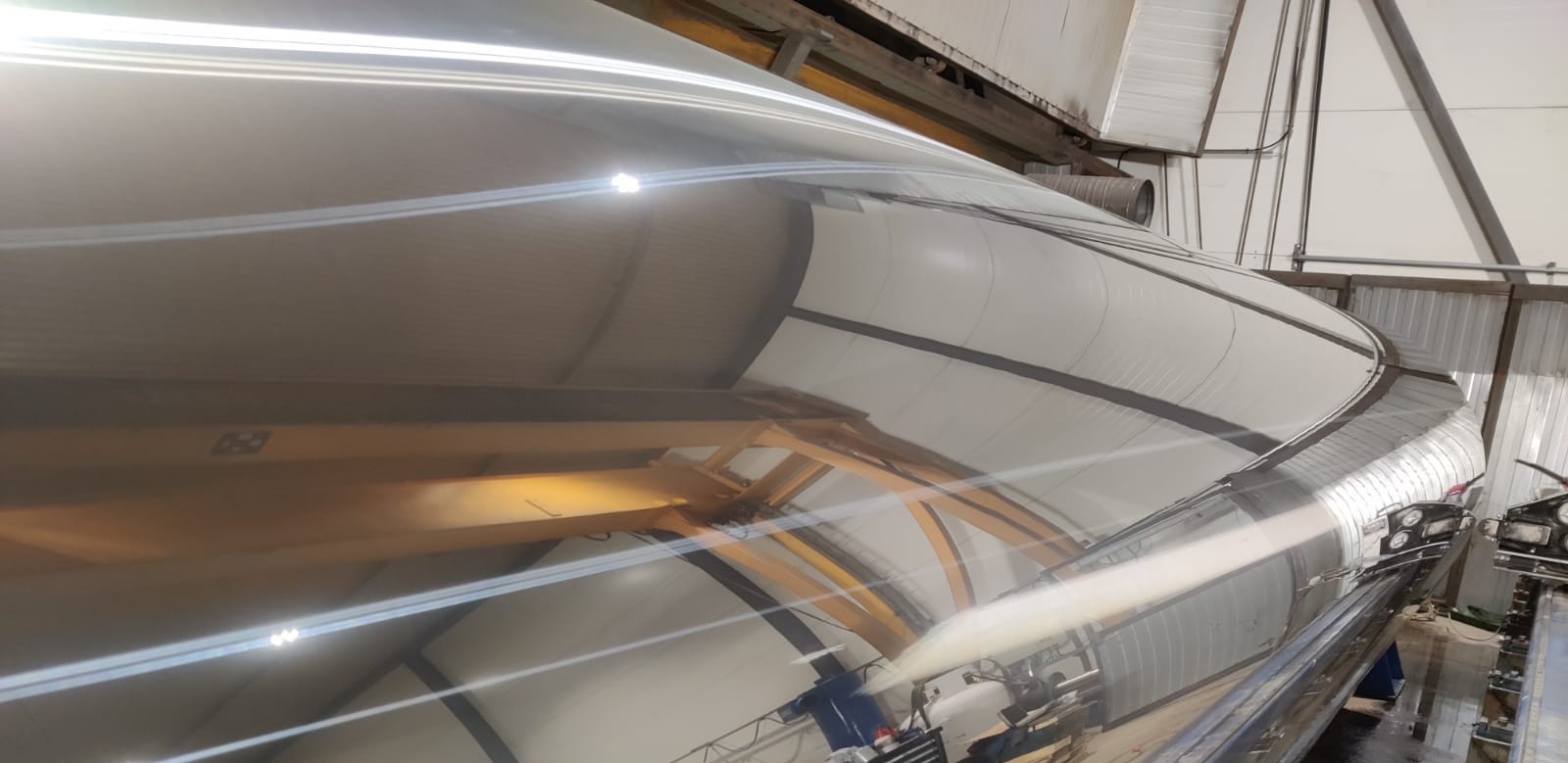

precision grinding of cylinders (such as Yankee dryers, drying cylinders and Clupak cylinders) with subsequent sandblasting and non-stick or hard coating; traction rolls coating; poolishing; spot repairs and others

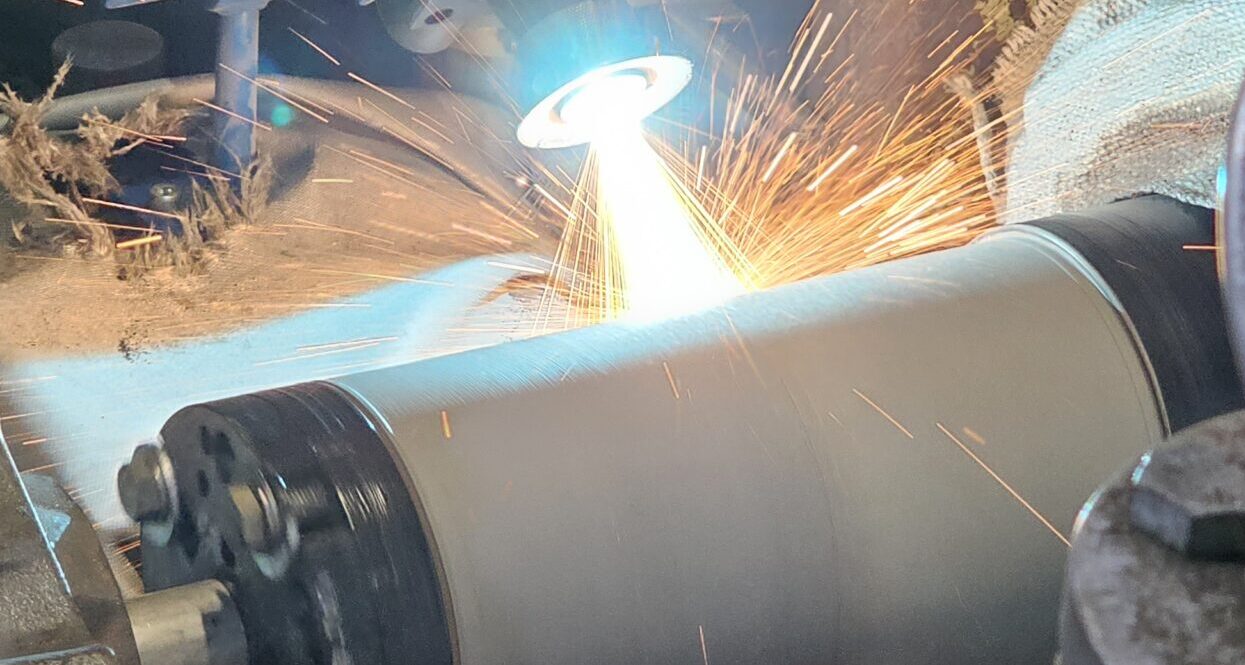

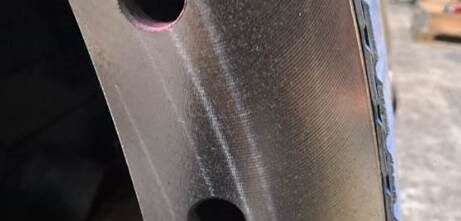

precision machining and grinding; journal bearing seat restoration by high density metal spraying or by sleeve instalation; tapered bearing seat restoration; key nut machining

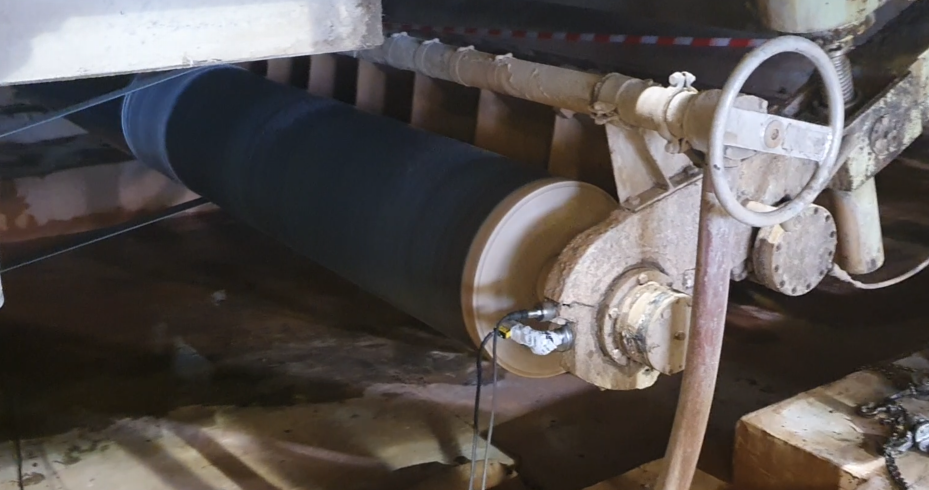

balancing of lead rolls, dryer cylinders and others in PM or outside

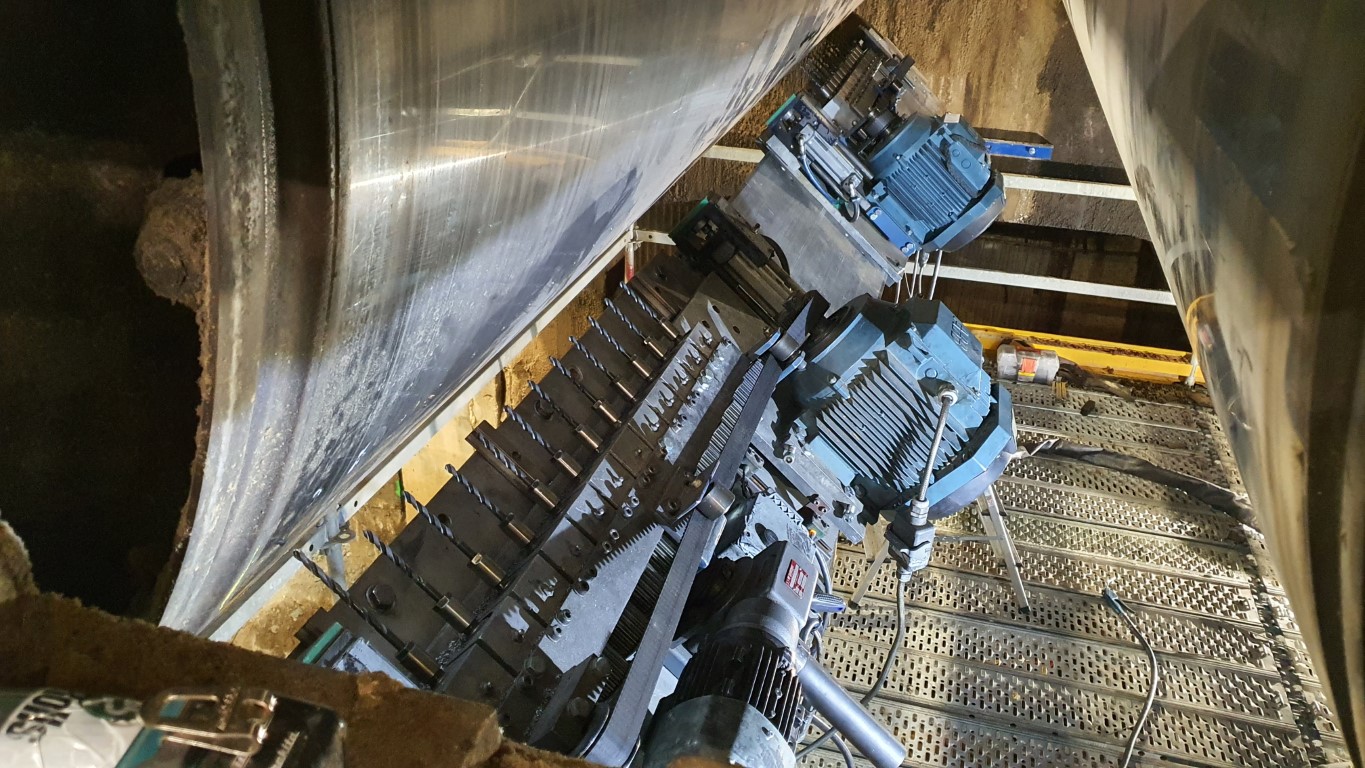

on-site modification of dryer cylinders by shell driling and grinding with additional instalation of separator chamber
dryer journal replacement, bearing exchange, sealing surfaces renewal and many others
large variety of nozzle types and sizes for customers various applications. Flat jet nozzles, needle jet nozzles, mono nozzles made of stainless steel also with ceramic insert for long lasting beam quality

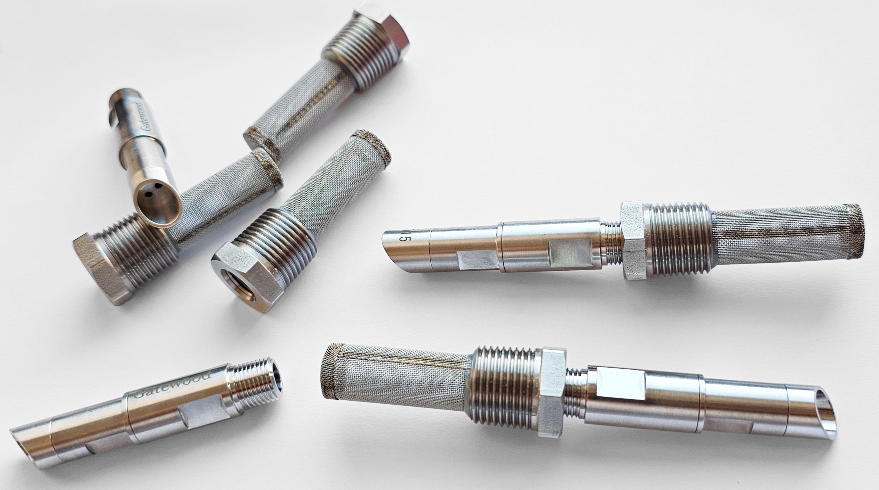

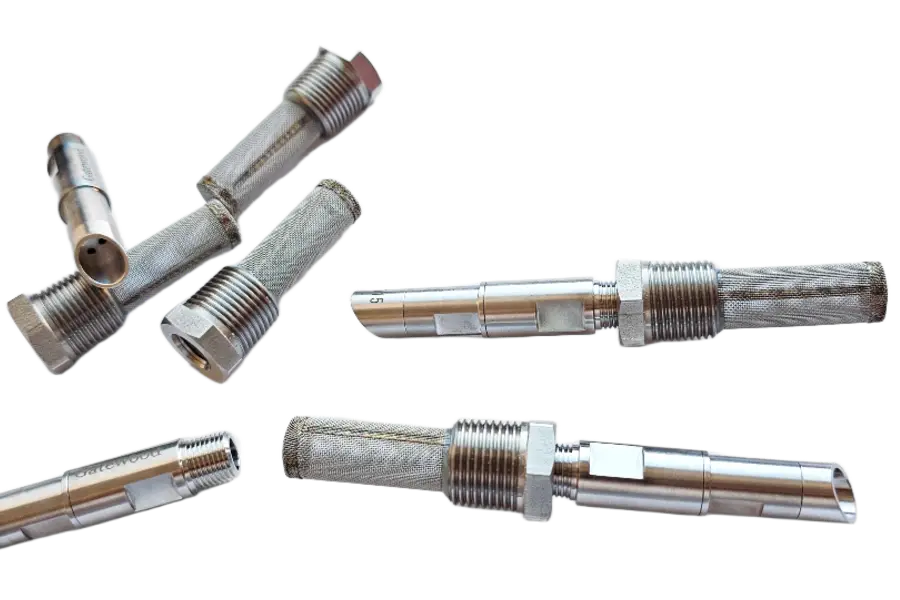

we are pleased to offer high quality trim nozzles and accessories from Gatewood. Trim nozzle is a long-lasting, precision, high pressure nozzle with an extremely hard ceramic tip. This tough, high quality nozzle was specially designed by Gatewood at the request of several large paper mills in need of a nozzle to withstand high pressure while maintaining the highest quality stream over long periods of time.
Trimm nozzles are available in single stream, double stream and double parallel stream. Nozzles can be equiped with drip shielding and filter screen

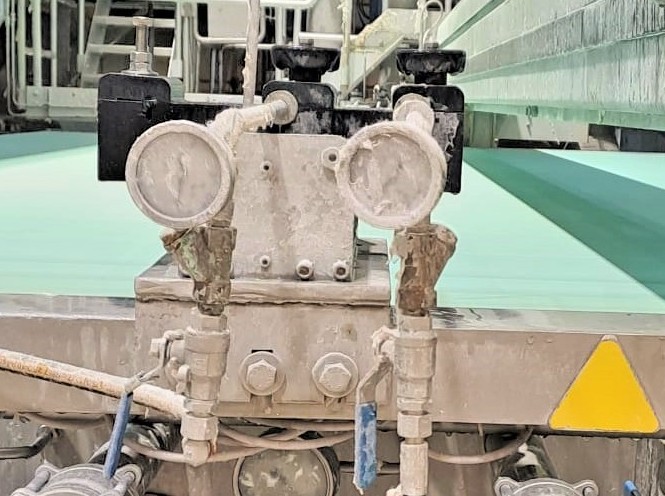

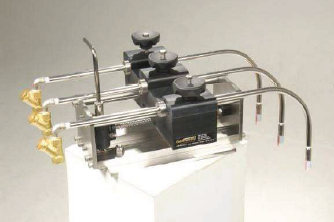

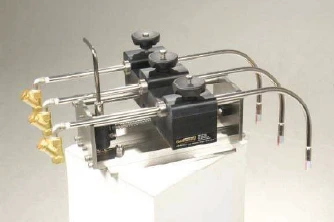

wet-end trimming machine from the world´s leading wet-end trim nozzle manufacturer Gatewood. Easy to install, unique and precise adjustments to the width of the paper, quick nozzle exchange during production.

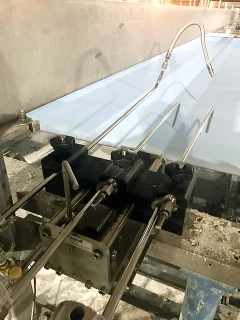

two trimming pipes are used in this case

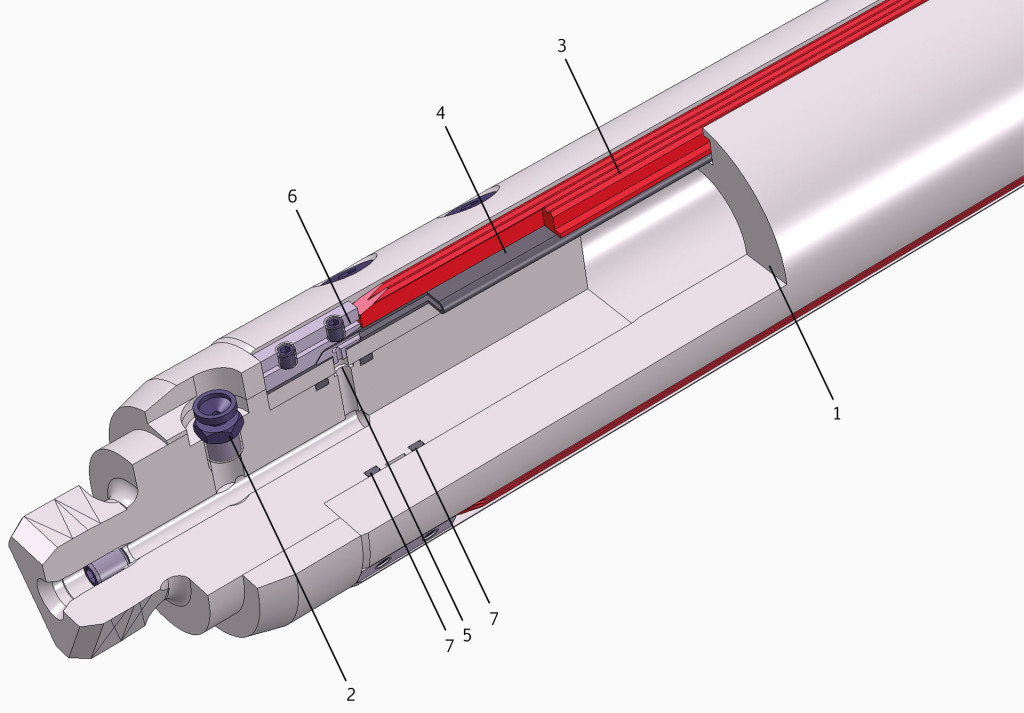

whether you are winding or unwinding web-like materials. You can choose solutions for single or multiple reels, and for use with sensitive cores, from the diversity of this product group. We satisfy the most demanding loading requirements and allow optimum web speeds. The use of lightweight construction reduces the weight of the equipment and enables ergonomic handling, while standardization guarantees an excellent price/performance ratio.
our products can handle any reel, whether pneumatic, mechanical or combined pneumatic/mechanical. Our sophisticated engineering ensures first-class functionality. In addition, the compatibility with a wide range of different machine types and automated production processes makes the machines extremely versatile.

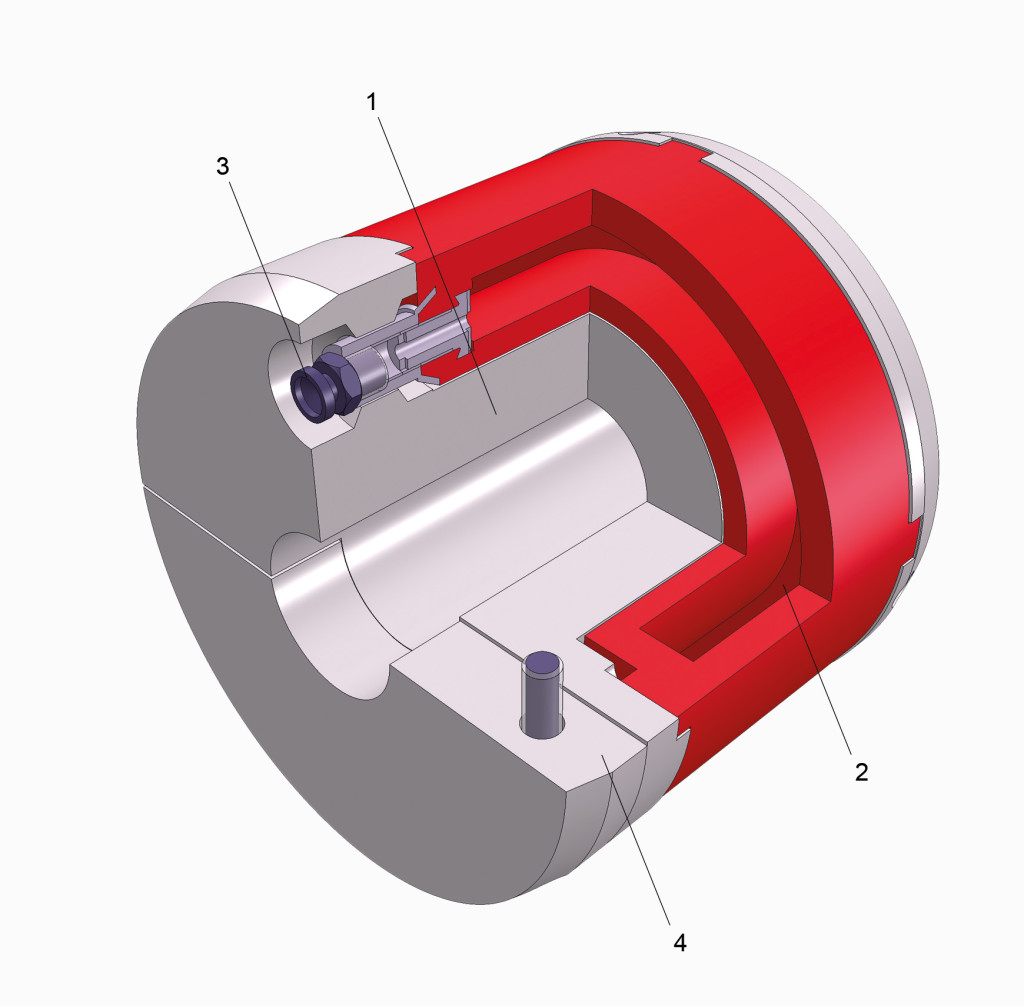

winding cores made of different materials and with different diameters call for a wide range of options. Ease of use, trouble-free operation and low maintenance are combined in our adapters. With low cost and reduced setup and downtime, you can accelerate and simplify your production and processing operations, reducing operating costs.

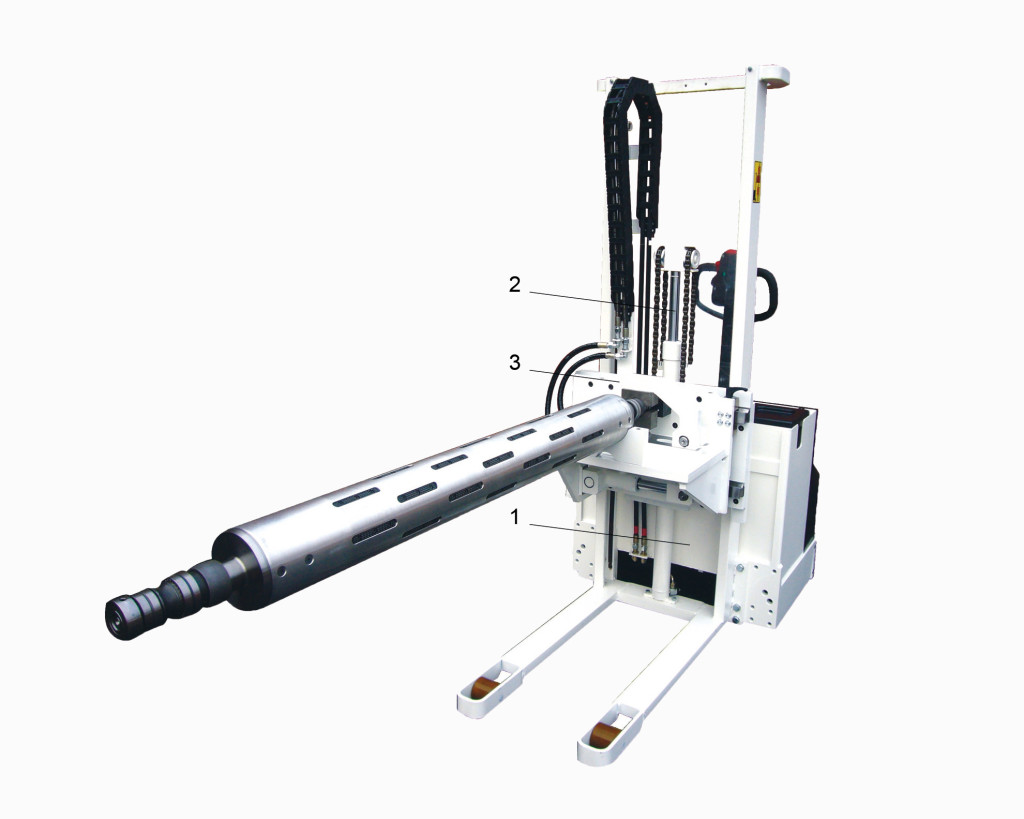

our handling systems offer significant benefits in terms of both mobility and efficiency. We ensure optimised processes in line with your individual requirements. Efficiency is increased by focusing on operational safety and ergonomics. With a convincing combination of technology and quality, our handling systems are highly versatile and easy to operate.

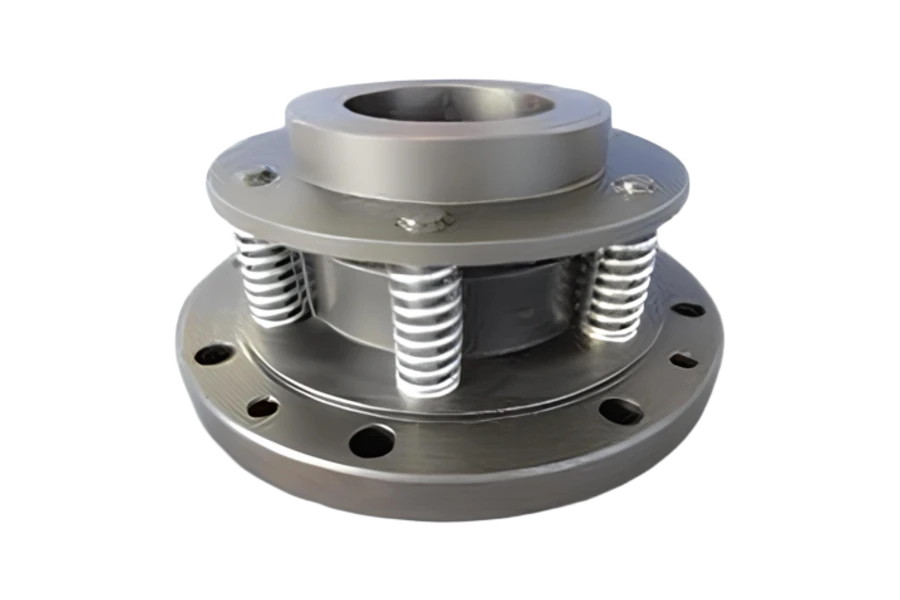

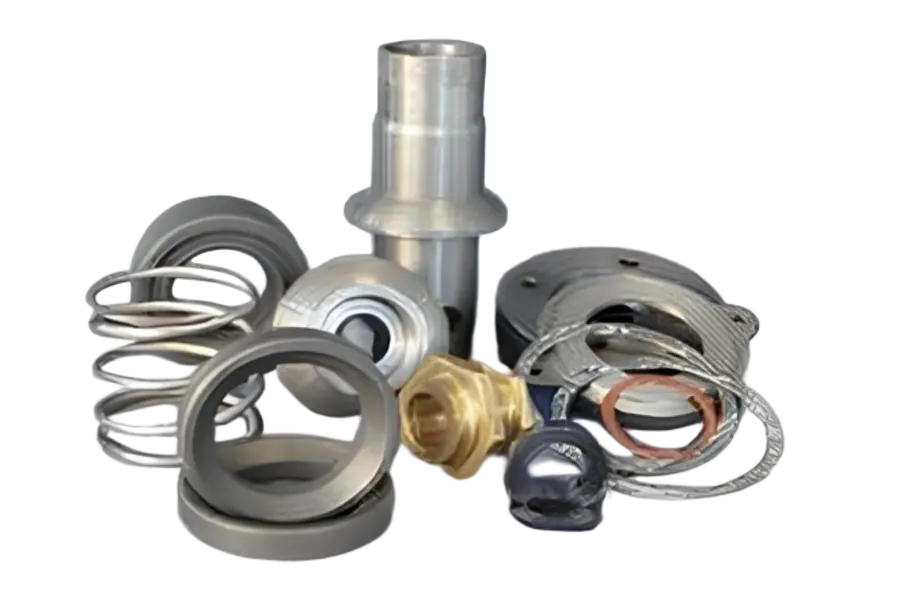

top quality inner wear parts (e.g. carbon seals, carbon guides, springs, nipples etc.).
for almost all widely used rotary steam joint heads from Kadant Johnson, Voith, Valmet and others.
