Up to 15,000 mm · 100 tonnes · 2,800 m/min
Roll Production & Reconditioning
Paper Industry · Roll Manufacturing
We manufacture and recondition rolls and cylinders for every section of the paper machine, to the highest dimensional and quality standards.
Forming Section
Breast rolls, forming rolls, guide rolls and couch rolls.
Press Section
Suction rolls, center press rolls, guide rolls. Press rolls up to 500 kN/m.
Dryer Section
Cast iron and steel dryer cylinders, yankee dryers, vac-roll cylinders, guide rolls.
Reeling Section
Pope cylinders, reel spools, guide rolls.
Winding Section
Winder drums, rider rolls.
Size Press
Hard and soft rolls, applicator rolls.
Clupak
Clupak central cylinders and rubber blanket circuit rolls.
Calender
Comming soon ... Chilled iron rolls (hard rolls), deflection-compensation / zone-controlled rolls, soft-covered rolls (soft calender).
Reconditioning — Standard
Visual, dimensional and NDT inspection, turning and grinding, surface repair by (spot) welding, balancing, re-coating, journal replacement, bearing system reconditioning, service documentation.

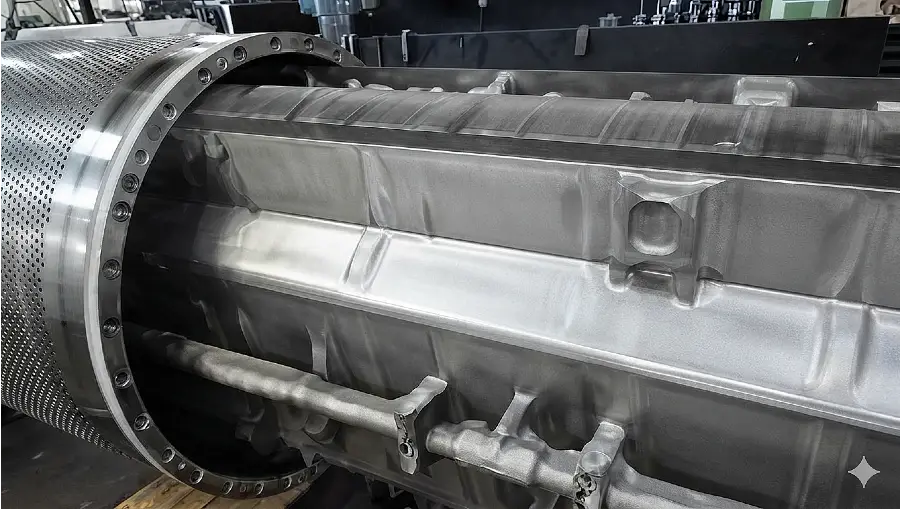

Reconditioning — Suction Rolls
Run test upon arrival/dispatch, cleaning, visual, dimensional and NDT inspection, inner and outside grinding of the shell, suction holes cleaning and renewal, shell/cover re-grooving, spraying nozzles exchange, sealings exchange, hoses exchange, bearing exchange, smart condition monitoring technology upgrades. Shell replacement from high-quality Duplex stainless steel.
Reconditioning — Dryer Cylinders
Visual, dimensional and NDT inspection, turning and grinding, surface repair by (spot) welding, balancing, re-coating, journal and end cap replacement, vessel pressure test, bearing system reconditioning, service documentation.

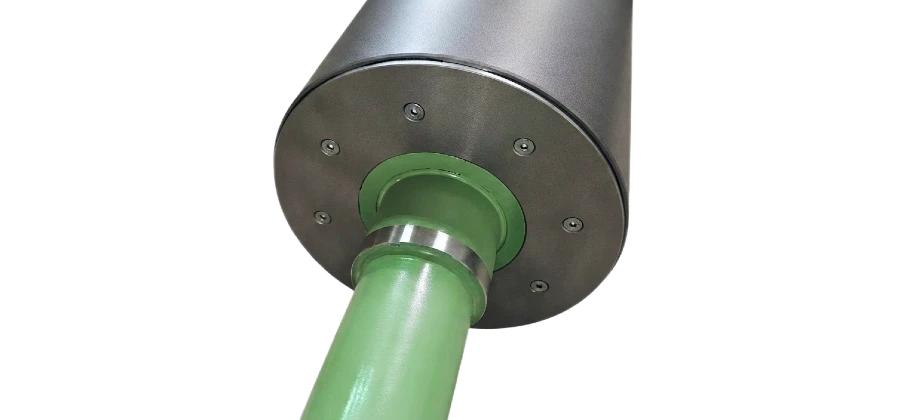

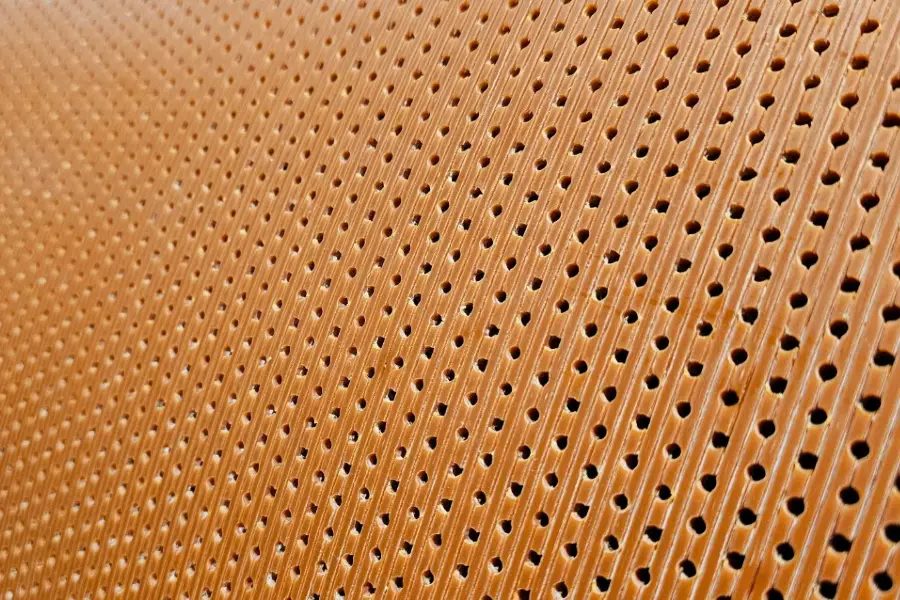

Roll Coatings & Covers
Paper Industry · Surface Treatment
We apply precision coatings and covers tailored to each paper machine section's specific operating conditions — wet, thermal, or high-load environments.
Forming Section
Ceramic coating, rubber and polyurethane covers for corrosion protection in wet environments.
Press Section
Hard coatings for suction pick-up rolls. Rubber and polyurethane covers for press and felt guide rolls.
Dryer Section
Carbide and nano-ceramic non-stick coatings for high-temperature durability and extended service life.
Size Press & Clupak
Nano-ceramic non-stick coatings, chrome coatings, carbide coatings with mirror finish surface polishing.
Calender
Rubber and polyurethane covers, thermal coatings for calender rolls in all configurations.
On-Site Services
Paper Industry · Field Maintenance
We bring our equipment and expertise to your mill. No machine relocation required — all services are performed in-place to minimize downtime.

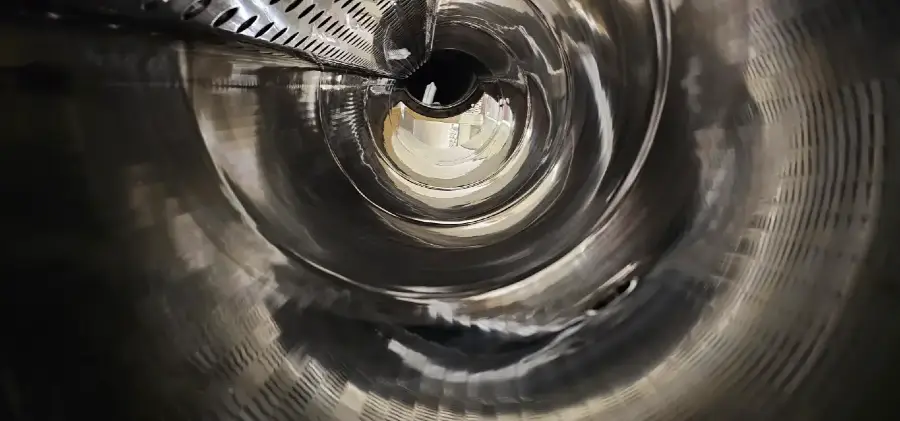

Headbox Cleaning & Polishing
Optimize machine runnability and prevent fiber hang-ups, slime, and organic deposits by implementing our integrated surface treatment. We provide deep chemical cleaning and mechanical polishing for all process vessels and pipework, followed by an advanced non-stick micro-coating to minimize future buildup and downtime.

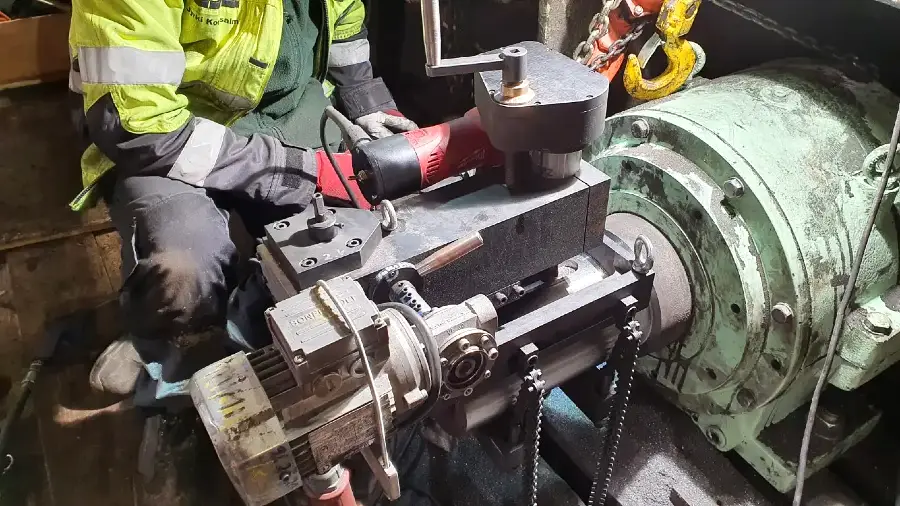

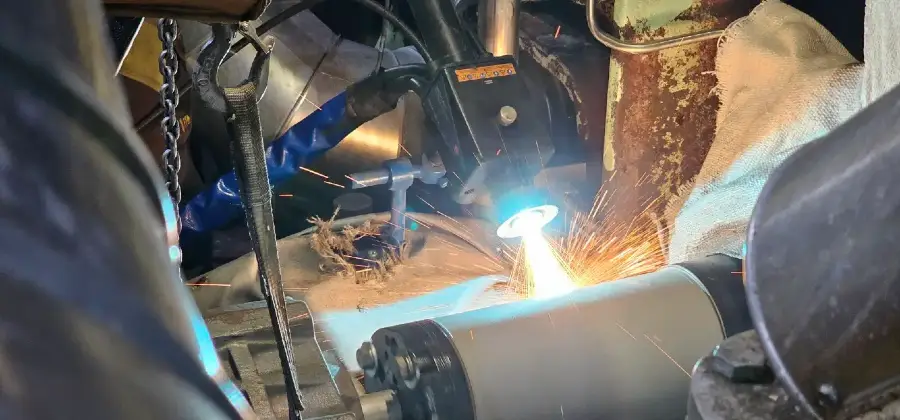

Shaft Repair & Modification
High-density metal spraying or sleeve installation for worn or damaged shafts. Tapered bearing seat restoration, key nut machining. Dimensional restoration to original specification.

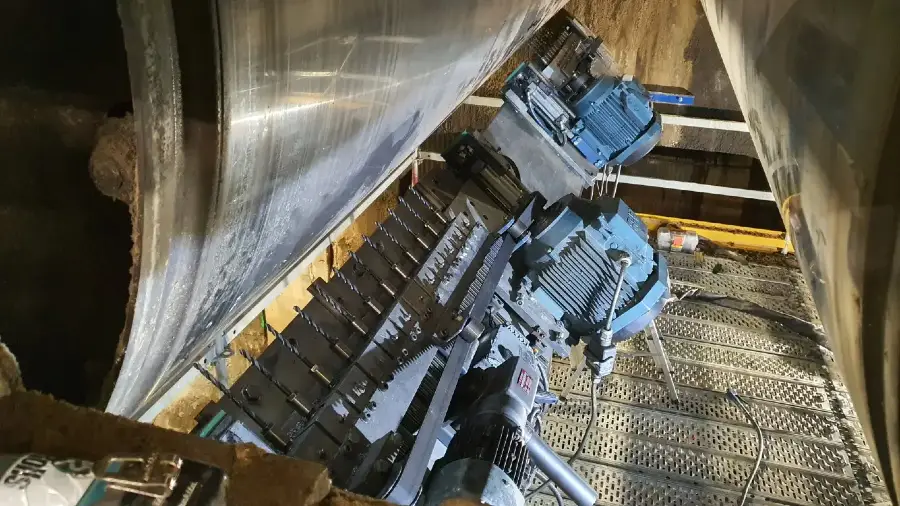

Dryer-to-VacRoll Modifications
In machine conversion of dryer cylinders to vacuum rolls for improved machine runability and performance. Shell driling and grinding with additional instalation of separator chamber.

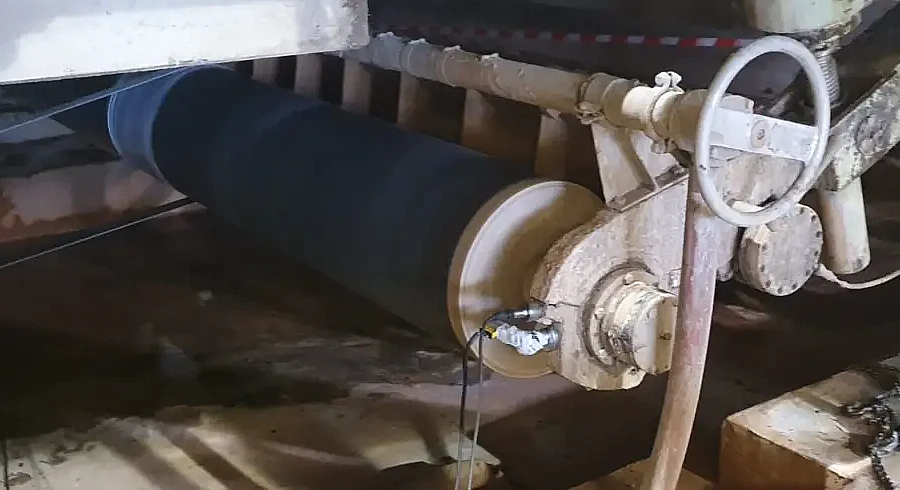

Balancing
On-site dynamic balancing of various rolls and cylinders to specified balance grades and machine speeds.
General Machining
Grinding, drilling, milling, turning and grooving of large equipment parts performed on-site using tailor-made equipment.
Grinding & Coating
Grinding, thermal coating and teflonizing of rolls and cylinders directly in the paper machine — no disassembly or transport to workshop required. We restore surface finish, diameter, roundness and coating. Typical applications include drying cylinders, pope rolls, where machine downtime must be kept to a minimum.
Gatewood Partner
Spray & Trimming Systems
Paper Industry · Nozzles & Trim
High-precision spray and trim systems for paper width control and jet cutting. Stainless steel construction also with rubby and ceramic inserts for long wear life.
Flat Jet Nozzles
Made from 316 Stainless steel construction, available with different spraying angels and sizes with ceramic insert for extended service life. Designed for precise, uniform spray distribution.

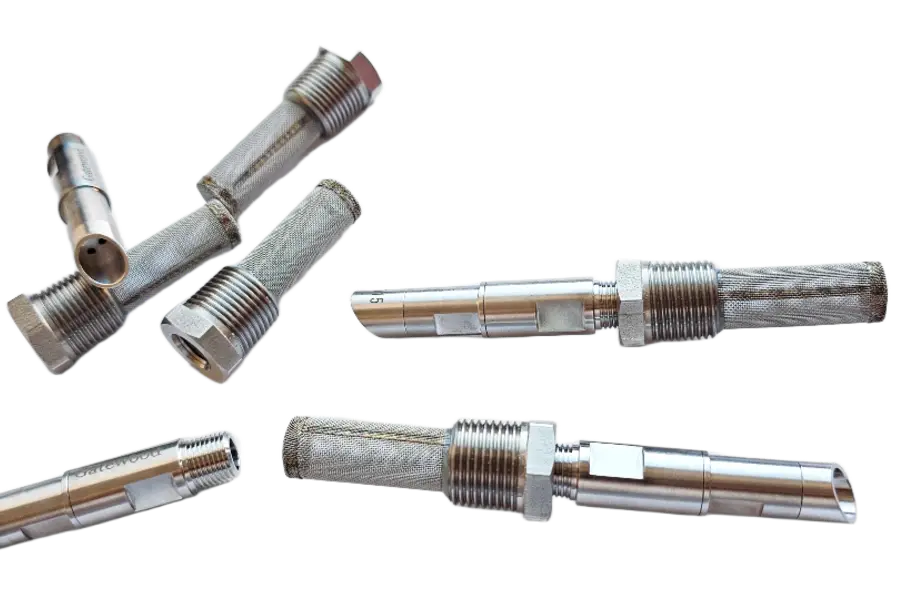

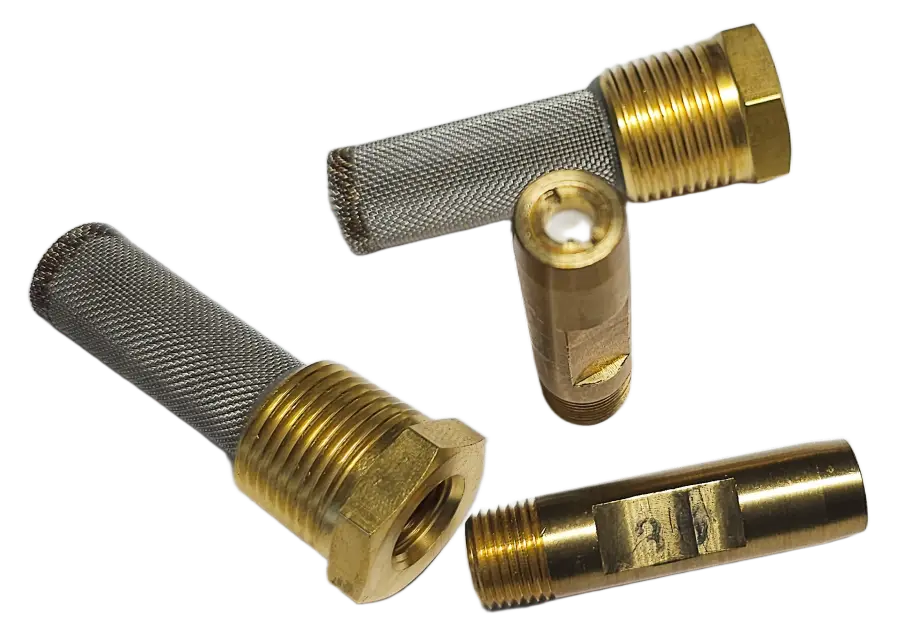

Needle Jet Nozzles
Body made from 316 Stainless steel or brass. Stainles tips or ruby and extremely hard ceramic tips. High-velocity focused jet for edge trimming and doctoring applications, available with accessories such as adapters and filter screens.
Tips in single, double, or parallel stream and adjustable configuration. Precise and reliable trim cutting for all paper grades.

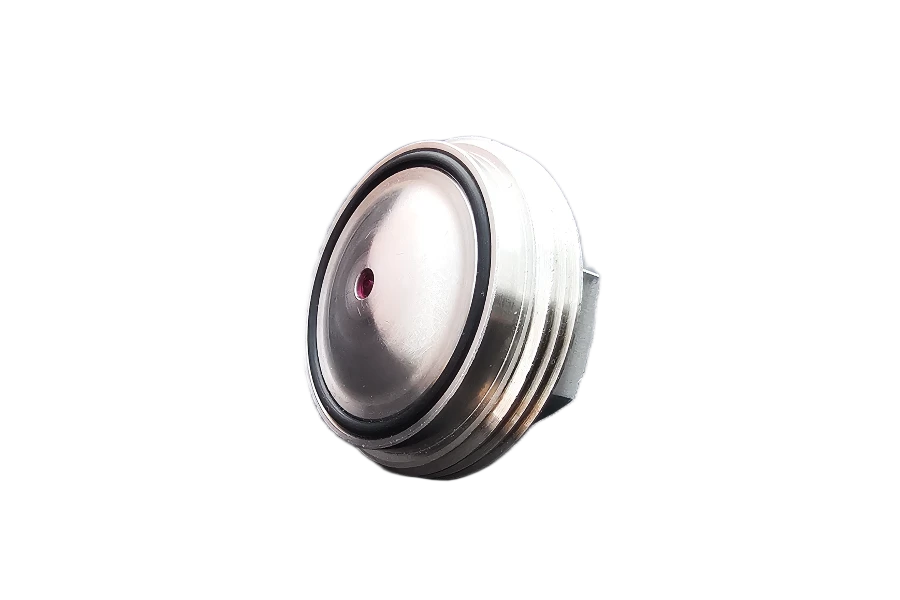

Mono Nozzles
Single-stream nozzles made from 316 Stainless Steel and designed for high pressure cleaning of felts, wires, fabrics and suction rolls. Convert operating pressures between bar, PSI and MPa with our pressure calculator.

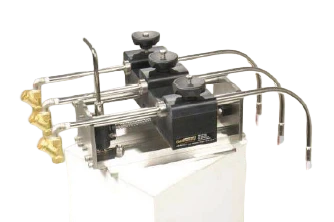

Edge Trimming Machines
Gatewood edge trimming machines with unique and precise width adjustment. Quick nozzle exchange system minimizes changeover time.
Spanntec Wickelsysteme GmbH
Winding Technology
Paper Industry · Winding Systems
Complete winding shaft and chuck solutions from Spanntec Wickelsysteme GmbH for single and multiple reel configurations. Lightweight design for safe, ergonomic operation.

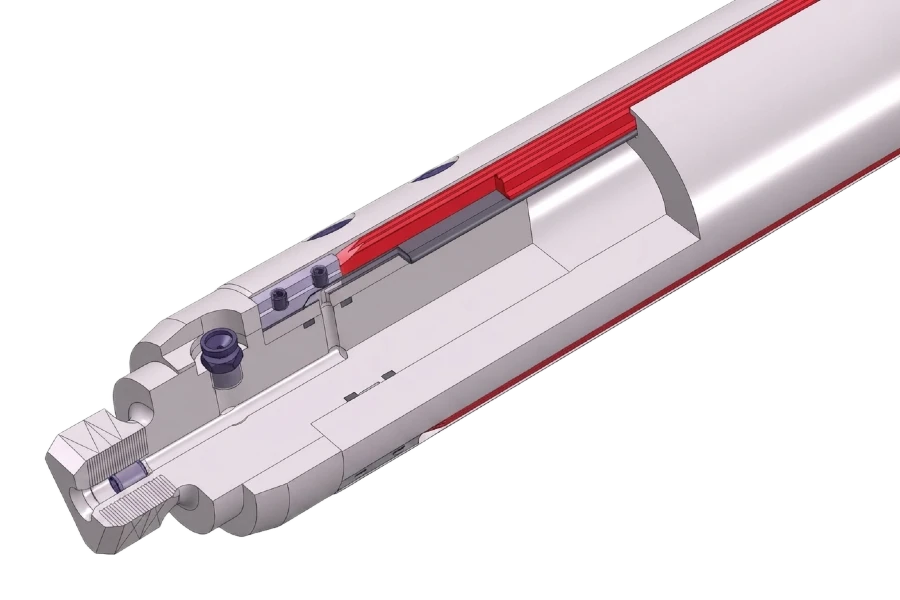

Expanding Shafts
Pneumatically or mechanically expanding winding shafts for single or multiple reels. Lightweight construction for ergonomic handling — significantly reduced operator fatigue.

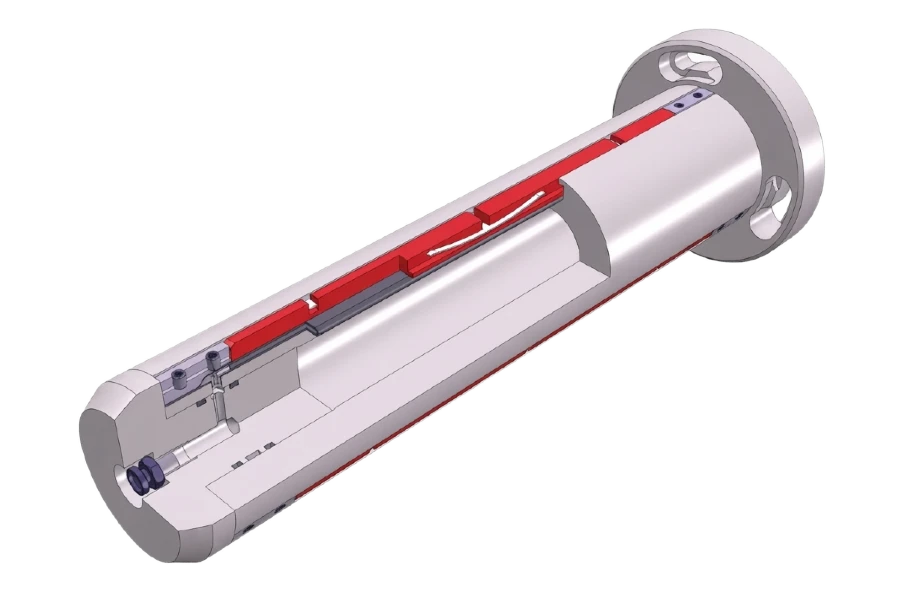

Winding Chucks
Precision winding chucks for accurate core holding and consistent reel quality.

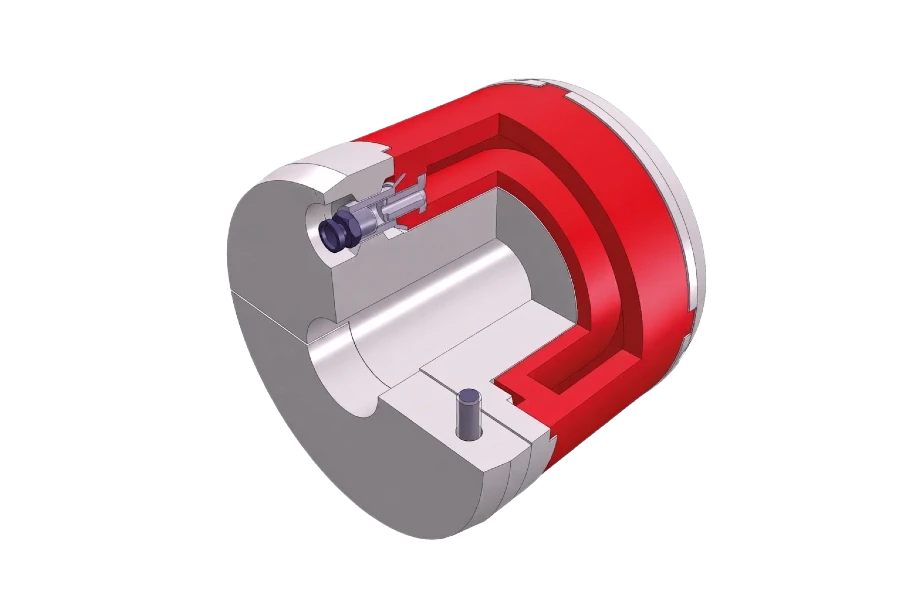

Pneumatic & Mechanical Adapters
Wide range of adapters for compatibility with various core sizes and winding heads.
Shaft Pullers
Mechanical and hydraulic shaft pullers for safe and efficient shaft extraction from wound reels.
Transport Trolleys
Ergonomic trolleys for safe shaft and reel transport within the paper mill.

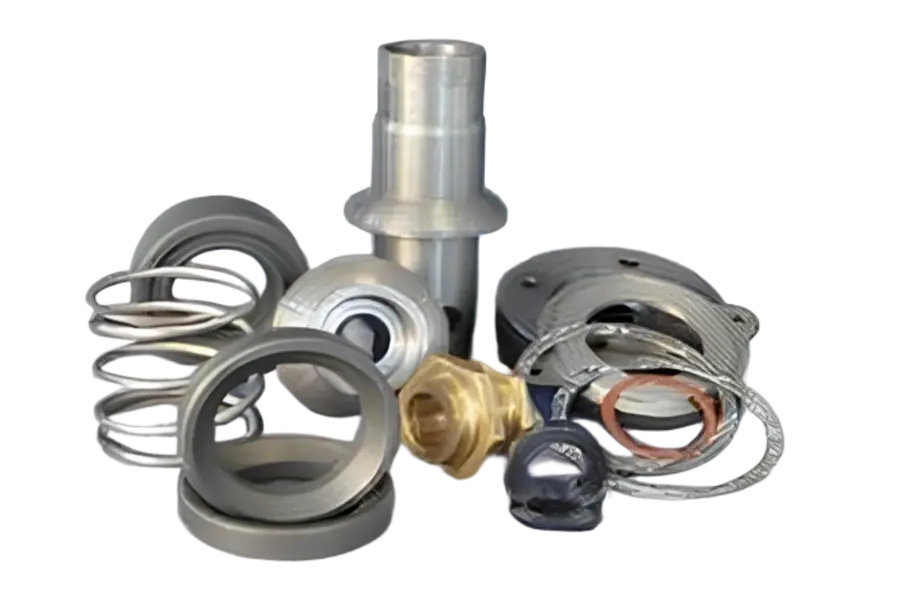

Rotary Steam Joint Parts
Paper Industry · Steam System Components
Top-quality inner wear parts for rotary steam joints — manufactured to precise tolerances for compatibility with all major steam joint heads.
Carbon Seals
High-performance carbon seals for reliable steam containment and extended service life in demanding thermal environments.
Carbon Guides
Precision-machined carbon guides ensuring accurate seal alignment and smooth rotary joint operation.
Springs & Nipples
Springs, nipples, and other inner wear components manufactured to OEM specifications.
Compatibility
Parts are available for Kadant Johnson, Voith, Valmet and other major steam joint manufacturers.
